Our Advantages
1. JRT laser distance module responds quickly with high accuracy and long range measuring.
2. We have been in this laser line for over 18 years, leading supplier of laser distance meter modules in China.
3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multi-functional.
4. Voltage can be changed by power converter LDO.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
2. We have been in this laser line for over 18 years, leading supplier of laser distance meter modules in China.
3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multi-functional.
4. Voltage can be changed by power converter LDO.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
Products Description
Model |

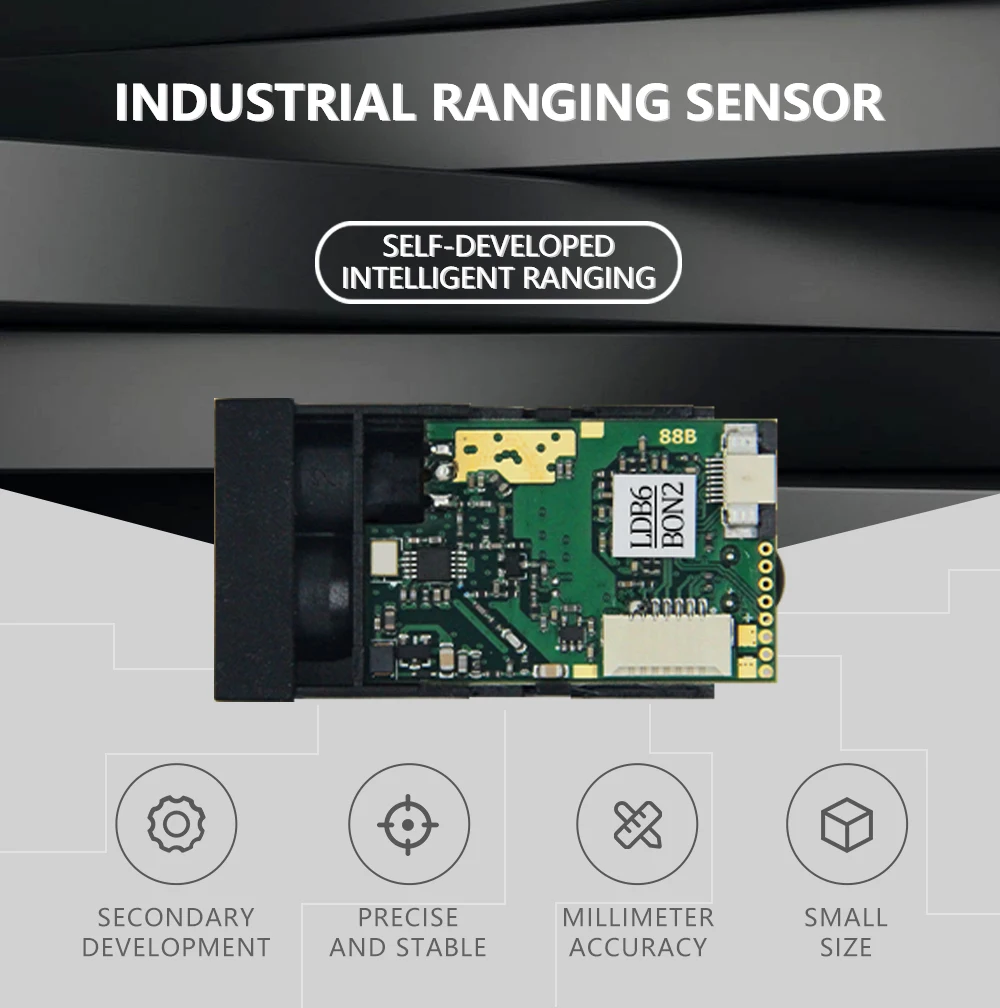

M88B |
Measurement range |

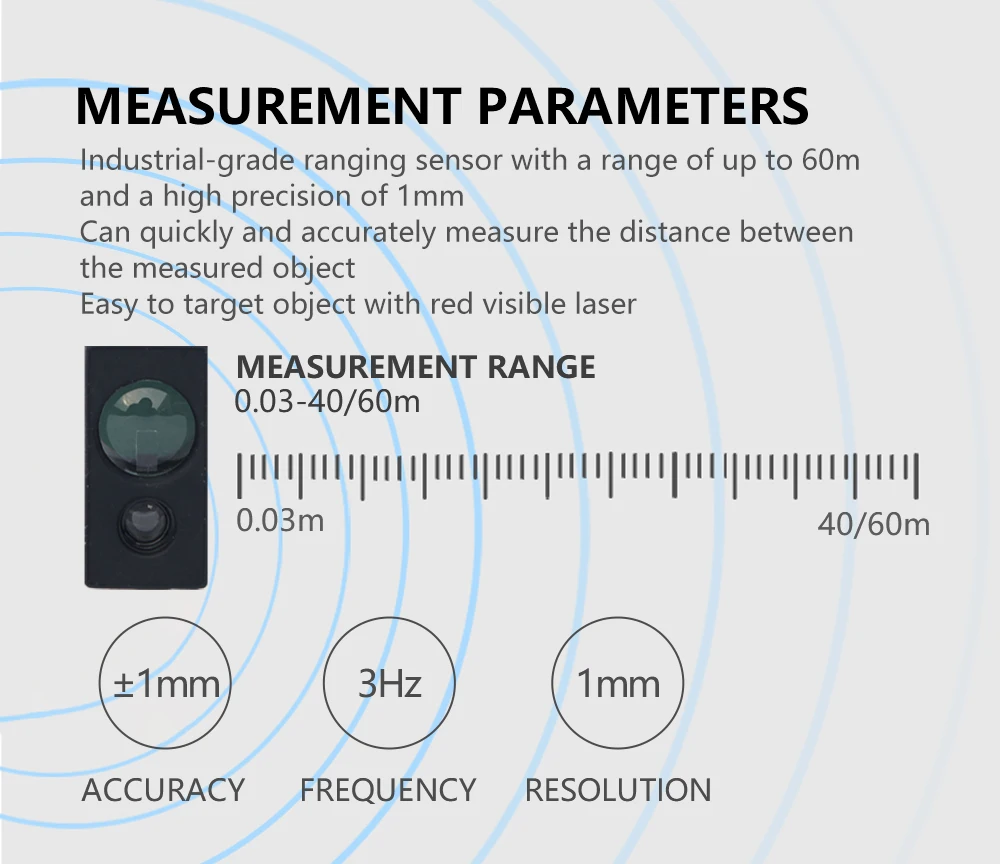

0.03~40m |
Measurement accuracy |
+/-1mm |
Measurement unit |
mm |
Measurement time |
0.4~4s |
Laser class |
Class II |
Laser type |

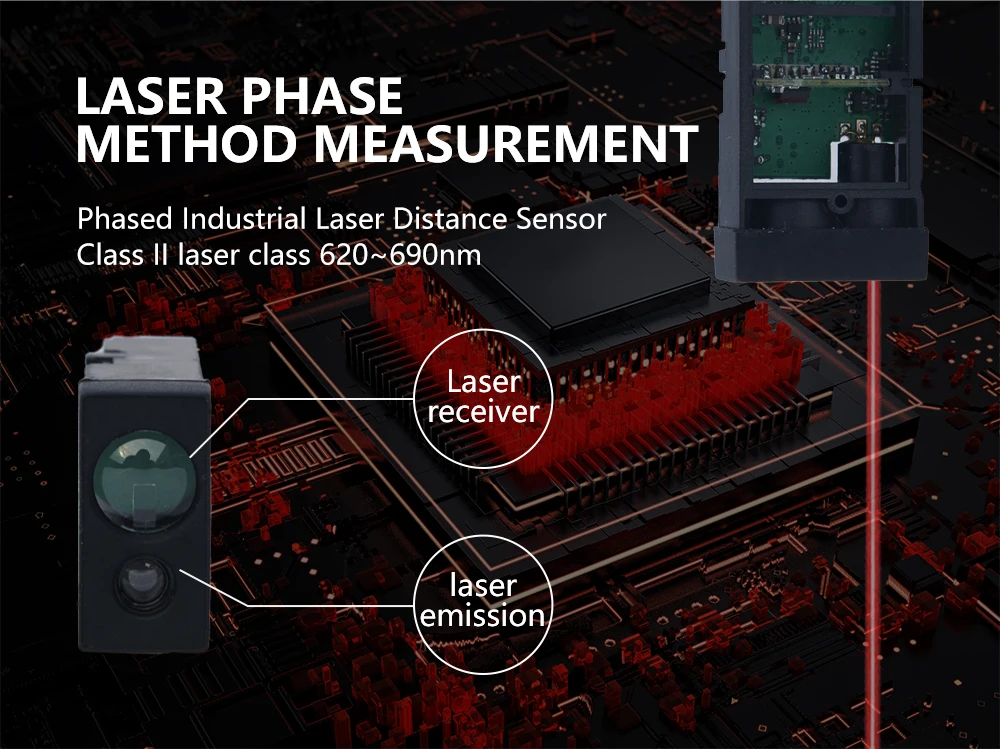

620~690nm,<1mW |
Size |

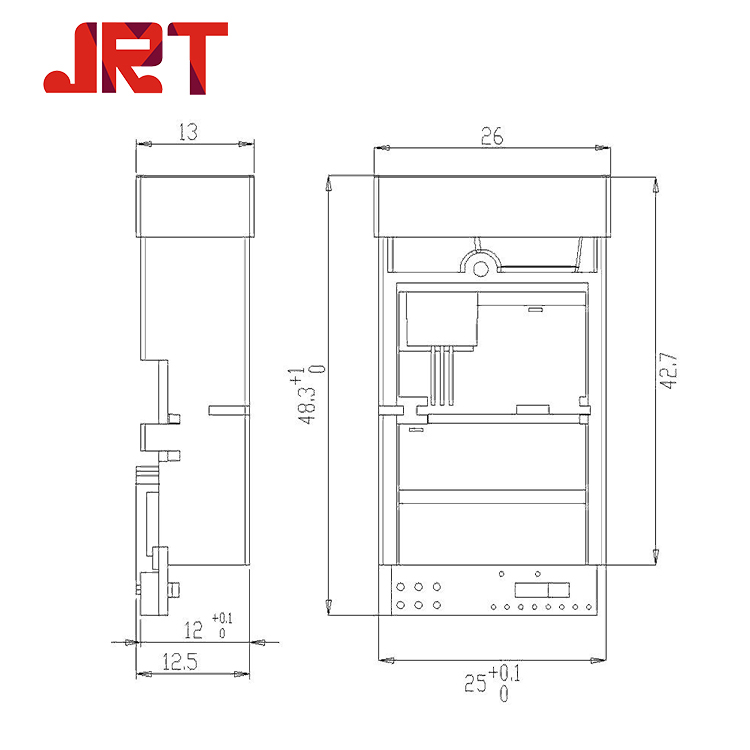

45*25*12mm |
Weight |
9g |
Frequency |
3Hz |
Voltage |
DC2.0~3.3V |
Working temperature |
0~40℃ |
Storage temperature |
-25~60℃ |
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm± 50PPM. 2. Under strong light or bad diffuse reflectance of target, please use a reflection board 3. Operating temperature -10 ℃~50 ℃ can be customized
Details Images

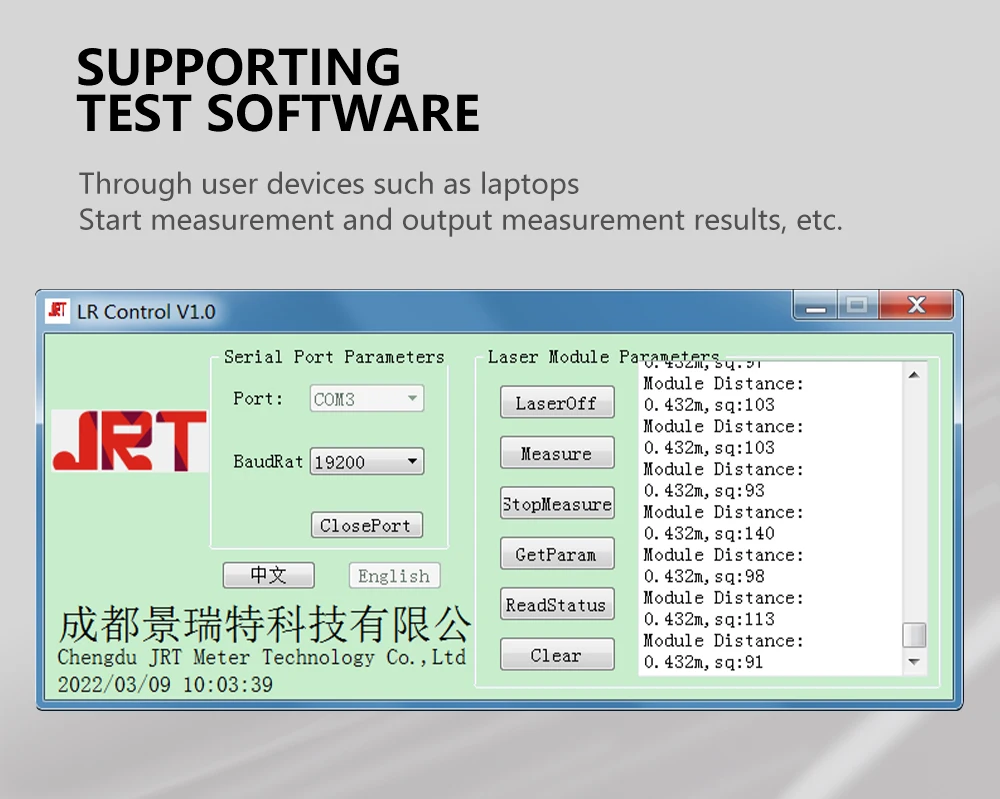

We can provide supporting test software to facilitate users to detect whether the laser distance module is working normally. Please contact us for download JRT easy testing the serial port test software. After the cables and USB communication converter are correctly connected, please follow the below steps: 1, Open the test software; 2, Select the correct port; 3, set the correct baud rate; 4, Open the port; 5, Click measure when the single measurement is required; 6,Click “ConMeaure” when Continuous measurement is needed, excite “StopMeasure” to exit continuous measure. The real time distance record that has been parsed can be seen in the date record box on right.
Recommend Products
Company Profile
Chengdu JRT Meter Technology Co., Ltd. is an enterprise specializing in the production and development of laser distance module industry and trade.We are a manufacturer possess of the world’s advanced laser technology single transmit and single receive.JRT Meter insist on developing and producing laser distance measurement sensor with better quality, smaller size, more favorable prices. We can do OEM/ODM designs and customize product functions as customer required.Our production line: Laser Distance Meter Module, Industrial Laser Distance Sensor, Laser Rangefinder.
Packaging&Shipping
Certifications
FAQ
1: Are you factory or wholesaler or trading company?
We’re the one of three leading manufacturers in China, production capacity up 10000 units/day.
We’re the one of three leading manufacturers in China, production capacity up 10000 units/day.
2: What’s the delivery time after an order placed for this Laser Distance Module?
Our standard delivery is 3 days if we have stock, otherwise we will let you know in time, usually we manufacture 5000pcs a day.
3: What’s the MOQ?
Regular products only 1pcs, OEM/ODM products need 1000pcs at least.
4: What’s the warranty of the laser sensor?
All our products have one year guarantee and a life-time after sales service.
5: Can I have a sample for testing?
Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.
6:Can you offer customized service?
Yes, we can offer customized service. If your laser measurement project has other requirements, please contact us.
After-sale service
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
