Leadshine Microstep driver DM860 Digital Stepper Drive

Description

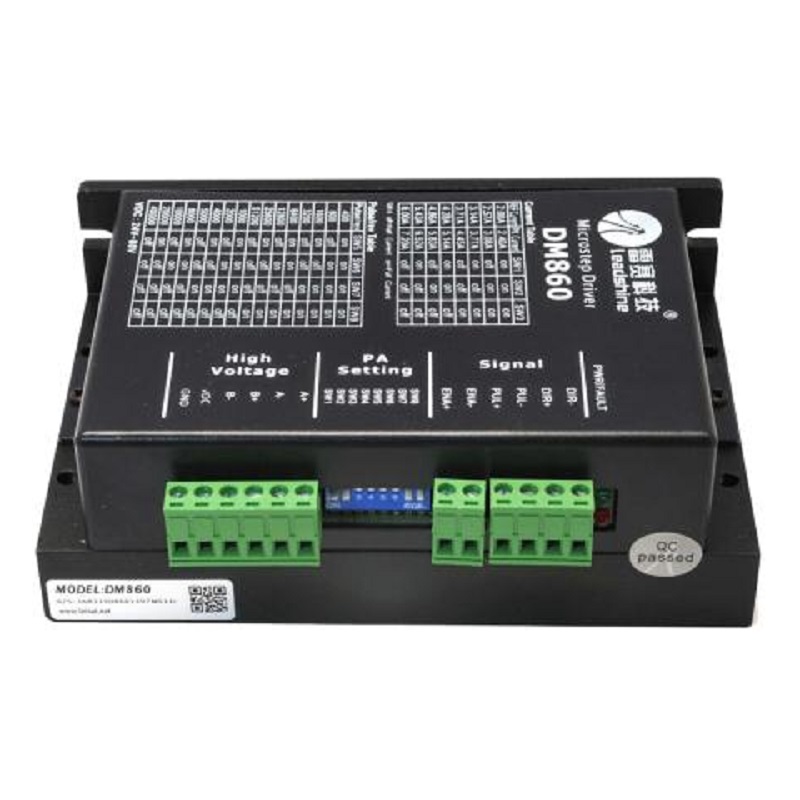

Leadshine Microstep driver DM860 Digital Stepper Drive

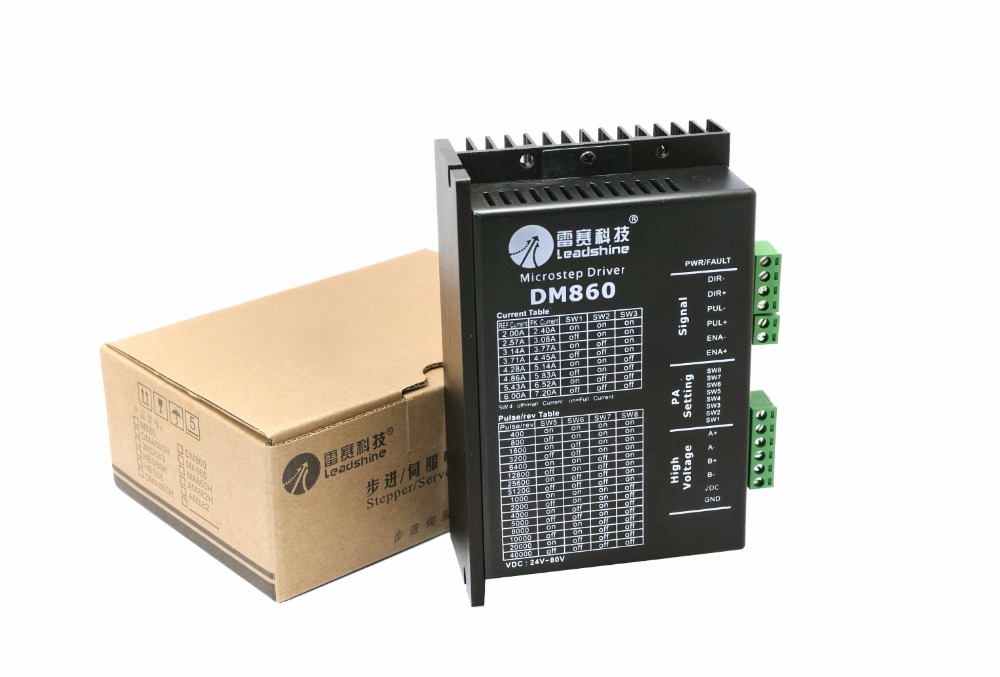

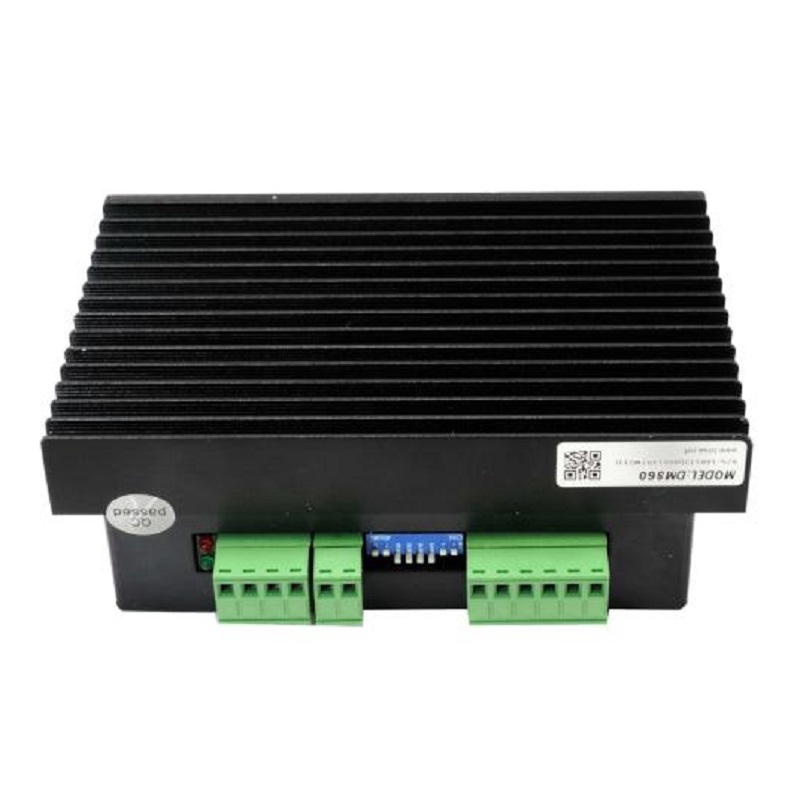

DM860 2-Phase 32-Bit DSP Digital Stepper Drive

The DM860 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping… With the input voltage of 20 – 80 VDC and output current of 0.50 – 5.60 A, it is capable of driving a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.

Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.

Features:

Step & direction or CW/CCW control

DSP-based stepper control technology

Anti resonance

Extra low noise

Extra smooth movement

Low drive & motor heating

Maximum frequency: 200KHz

Input voltage: 20 – 80 VDC

Output current: 8 selections of 0.50 – 5.60A via DIP switches

Micro steps: 16 selections of half – 256 step via DIP switches

Automatic idle current reduction

Specification

Model: DM860

Phase: 2

Control Mode: Step & Dir

Max Input Frequency: 200Khz

Input Voltage Range: 20 – 80 VDC

Suggested Power Supply Voltage Range: 24-72 VDC

Output Current: 0.50 – 5.60 A

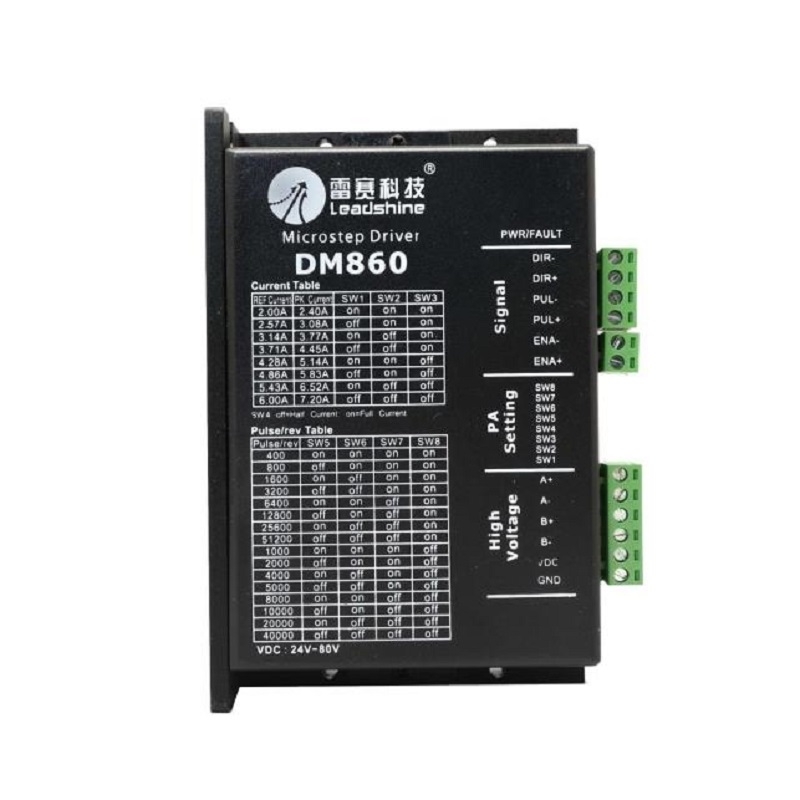

# of DIP Switch Resolution Configurations: 16

DIP Switch Resolution Setings: 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000

# of DIP Switch Current Configurations: 8

DIP Switch Current Configurations: 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A

Logic Current Range: 7-16mA      (10mA typical)

Logic Voltage Range: 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low

Pulse enabled at: Rising edge

Idle Current Percent: 50 %

# of Digital Inputs: 3

Step Width: 2,500 ns

Minimal Direction Setup Time: 5,000 ns

Protection: Over current; over voltage; phase error

Isolation Resistance: 500M Ohm

Environment: Avoid dust, oil fog and corrosive gases

Ambient Temporature: 0-50°C

Humidity: 40–95% RH

Operating Temporature: 0-70°C

Vibration: 5.9 m/s2 Max

Storage Temporature: -20-65°C

Specification: 4.65 X 2.97 X 1.30 Inches

Weight: 0.60 lb
