Description

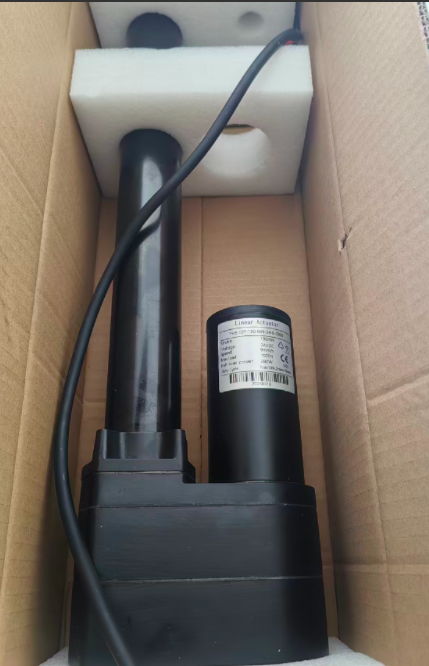

YH8-521-190-556-24-9-7000 is a heavy-duty DC electric push rod of YH8 series, with built-in travel switch and trapezoidal screw drive, suitable for industrial automation, heavy machinery, solar tracking and other scenarios.
YH8: YH8 series electric push rod
521: Structure/specification code (heavy-duty, external Hall/internal travel switch)
190: Rated thrust 1900N (≈ 190kgf)
556: stroke 556mm
24: Supply voltage 24VDC
• 9: No load speed 9mm/s
7000: Maximum load 7000N (≈ 700kgf)
